“How to choose the right grinding equipment to make copper ore grinding test(experiment) more efficient and more accurate?” In the copper ore beneficiation process, grinding is a key step in determining the efficiency of subsequent flotation or leaching, and equipment selection directly affects production efficiency, energy consumption, and operating costs. An adapted grinding mill can not only reduce energy consumption per ton of ore, but also improve copper recovery through precise particle size control. If you blindly use a high-energy ball mill to process soft ores, or misuse a rod mill to pursue ultra-fine particle size, it will waste resources and reduce the recovery rate. But faced with various options such as drum, cone, ceramic ball mill, rod mill, & ring and puck mill. How can you make scientific equipment decisions based on parameters for the copper ore grinding test?
How to choose equipment for the copper ore grinding test? Comparison of 5 types of grinding equipment: cylindrical ball mill is suitable for coarse grinding but has high energy consumption; conical ball mill has better energy efficiency; ceramic ball mill guarantees purity and is suitable for laboratory testing; rod mill produces uniform particle size and is conducive to re-selection; sample making machine specializes in laboratory ultra-fine grinding. The key lies in the comprehensive evaluation of ore characteristics (hardness, particle size) and target fineness requirements.
Table of Contents
What is the purpose of copper ore grinding test?
The core goal of grinding is to obtain an ideal particle size distribution to meet the needs of subsequent mineral processing. However, the grinding test of copper ore is to simulate industrial production conditions on a small scale, and the ultimate goal is to provide a suitable sample particle size distribution for flotation, leaching or chemical analysis.
- If the purpose is process optimization, it is necessary to focus on simulating industrial-grade grinding conditions and record energy consumption and particle size change data.
- If it is a mineral dissociation study, it is necessary to ensure that the target mineral is fully exposed without being excessively damaged.
- If it is used for quality control, the representativeness and repeatability of the sample are emphasized. The grinding intensity, time, and medium selection corresponding to different purposes are different. Clarifying the experimental goals can significantly improve work efficiency.
What are the core requirements for copper ore grinding tests?
1. Ore characteristics
For example, porphyry copper ore often requires multi-stage grinding due to its complex internal embedding. Layered copper ore is relatively easy to crush. The density, fracture toughness, and degree of cleavage development of the ore will affect the grinding effect. It is recommended to observe the ore sample with a microscope before testing, and perform pre-crushing treatment if necessary. This preliminary work can effectively improve the grinding efficiency and test accuracy.
2. Target fineness requirements
The setting of target fineness needs to take into account both test requirements and economic benefits. If the experimental goal is mineral composition analysis, a sample preparation machine is required to prepare samples quickly. The flotation process usually requires that the proportion of fine materials is ≥80%, and then a conical ball mill is required for fine grinding. In the magnetic separation process, a coarse particle size of less than 3mm is allowed, and a rod mill is more efficient. It is best to use coarse grinding to quickly process a large number of samples first, and then finely grind the key samples, which can both ensure data quality and improve overall work efficiency.

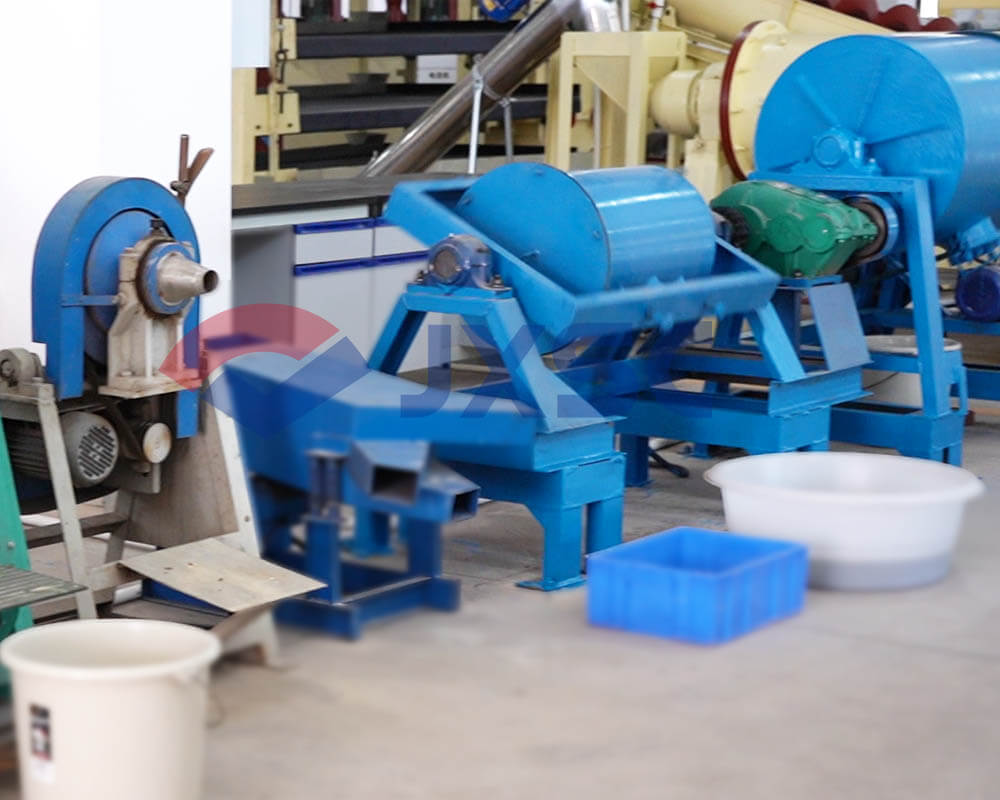

Types of Grinding Equipment for Copper Ore Testing
1. Drum Ball Mill
The drum ball mill crushes the ore by the impact and friction of the steel balls in the rotating cylinder. The large processing capacity makes it suitable for continuous production, but it is easy to produce over-crushing during the impact process. It is mainly used for coarse grinding before flotation to ensure that the ore particle size is evenly distributed between 0.2-3mm for subsequent classification and sorting.
√ Advantages: Large loading capacity, suitable for handling medium and coarse grinding needs of 20-200 mesh. Especially suitable for the coarse grinding stage after primary crushing.
Χ Limitations: High speed leads to high energy consumption. If the ore is soft or contains clay, it is easy to over-crush. The grinding time and steel ball ratio need to be carefully controlled.

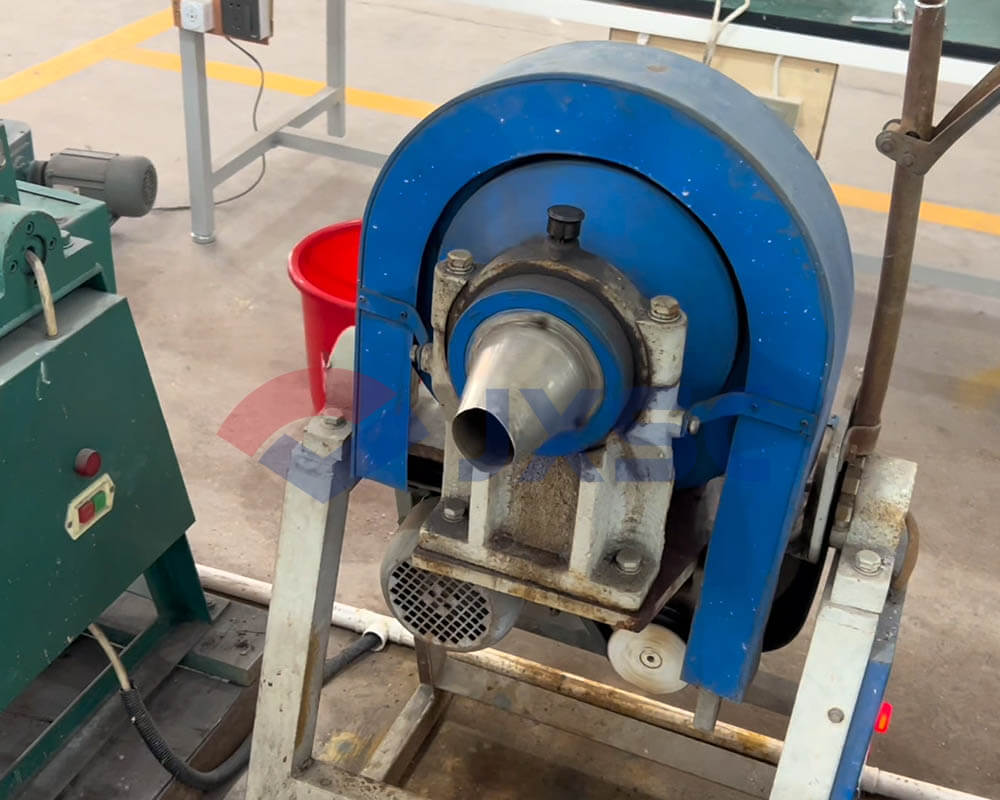

2. Cone Ball Mill
The cylinder has a conical structure, and the ore moves longitudinally from the large end to the small end. Minerals of different particle sizes can be graded and ground to improve the uniformity of the final product. It is mainly suitable for medium-sized particle grinding of 50-300 mesh, such as the second-stage grinding or regrinding of copper ore.
√ Advantages: Compared with traditional cylindrical ball mills, it can complete the grinding operation with lower energy consumption.
Χ Limitations: The internal structure is complex, there are many parts, and professional personnel are required for maintenance, and the maintenance time is long and the cost is high.
3. Ceramic Ball Mill
Ceramic lining and grinding media are used to avoid metal contamination and ensure sample purity. It is suitable for high-demand experiments such as chemical analysis and trace element detection.
√ Advantages: No iron contamination after grinding. Especially suitable for small-batch grinding work in the laboratory, such as sample preparation for laboratory testing, it can prepare high-purity ore samples and provide accurate data for analysis.
Χ Limitations: Small processing volume, ceramic parts are easy to wear, resulting in high costs. The impact force is limited, and it is not suitable for hard copper ores with high mineral dissociation.
4. Lab Rod Mill
Long steel rods are used instead of steel balls to grind the minerals by line contact, which reduces excessive impact and makes the particle size distribution more concentrated, which is suitable for gravity separation or coarse particle flotation pretreatment.
√ Advantages: The ground ore has uniform particle size. When the rod mill is used before gravity separation, it can improve separation efficiency and reduce unnecessary losses.
Χ Limitations: It is difficult to achieve ultrafine grinding below 100 mesh. The steel rods wear quickly and need to be replenished regularly, otherwise the grinding efficiency will gradually decrease.
5. Ring and Puck Mill
Designed for laboratory testing of ultra-fine grinding, suitable for high-precision sample preparation before XRD/XRF testing, can reach micron-level fineness within minutes.
√ Advantages: The sample uniformity is extremely high, suitable for the fast grinding of small amounts of copper samples. The equipment is well sealed to avoid cross-contamination.
Χ Limitations: The processing volume is extremely small and cannot meet the needs of mass production testing. Long-term operation may cause the grinding cup to heat up and affect certain reactive minerals.
The selection of copper ore grinding equipment needs to comprehensively consider the processing volume, target fineness, ore grindability and economy. Ball mills are suitable for large-scale coarse grinding, rod mills are suitable for reducing over-crushing, and laboratory-specific equipment such as ceramic ball mills and ring and puck mill focuses more on high precision and pollution-free.
Grinding equipment selection for copper ore grinding test
(1). Ore hardness
Copper ores with different hardness have significantly different impact and wear on grinding equipment. For example, for bornite with high hardness, a drum ball mill with high compressive strength and wear resistance needs to be selected. For azurite with low hardness, a conical ball mill with strong adaptability to the ore and good fine grinding effect can be selected to ensure grinding efficiency.
(2). Humidity or mud content
High humidity and high mud content are prone to clogging equipment, but rod mills can reduce clogging. For ores with low humidity and mud content, various equipment are well adapted, but they also need to be selected in combination with other indicators to ensure stable operation of the equipment.
(3). Grinding target
If it is industrial-grade continuous production, high-capacity equipment such as drum ball mills are required. If it is experimental research or trace element analysis, small-batch equipment such as ceramic ball mills is suitable. Rod mills or drum ball mills can be selected for coarse grinding, cone ball mills are recommended for medium and fine grinding, and laboratory ring and puck mills are required for ultrafine grinding.
(4). Cost-effectiveness
It is necessary to comprehensively evaluate equipment procurement, energy consumption, medium loss, and maintenance difficulty. For example, ceramic ball mills have high purity but expensive maintenance. Rod mills have low operating costs, but steel rods need to be replaced frequently. Only by accurately matching core indicators can a high-efficiency, low-cost copper ore grinding test service be achieved.
Summarize
Copper ore grinding test is a systematic project, which requires a balanced relationship between the purpose of the experiment, ore characteristics, fineness requirements, and equipment parameters. Among them, the drum ball mill is suitable for large-scale coarse grinding, the conical ball mill performs well in medium-sized grinding and focusing on energy consumption, the ceramic ball mill guarantees high-purity grinding, the rod mill has an advantage in uniform particle size control before gravity separation, and the ring and puck mill focuses on ultra-fine grinding and sample preparation in the laboratory. In the actual copper ore processing and experimental process, scientific grinding equipment selection requires a systematic analysis of ore characteristics, fineness requirements, processing scale, and cost factors.
Asia-Africa International (JXSC) provides these 5 types of mainstream laboratory grinding equipment. Contact us to quickly lock in the optimal copper ore beneficiation test solution!
